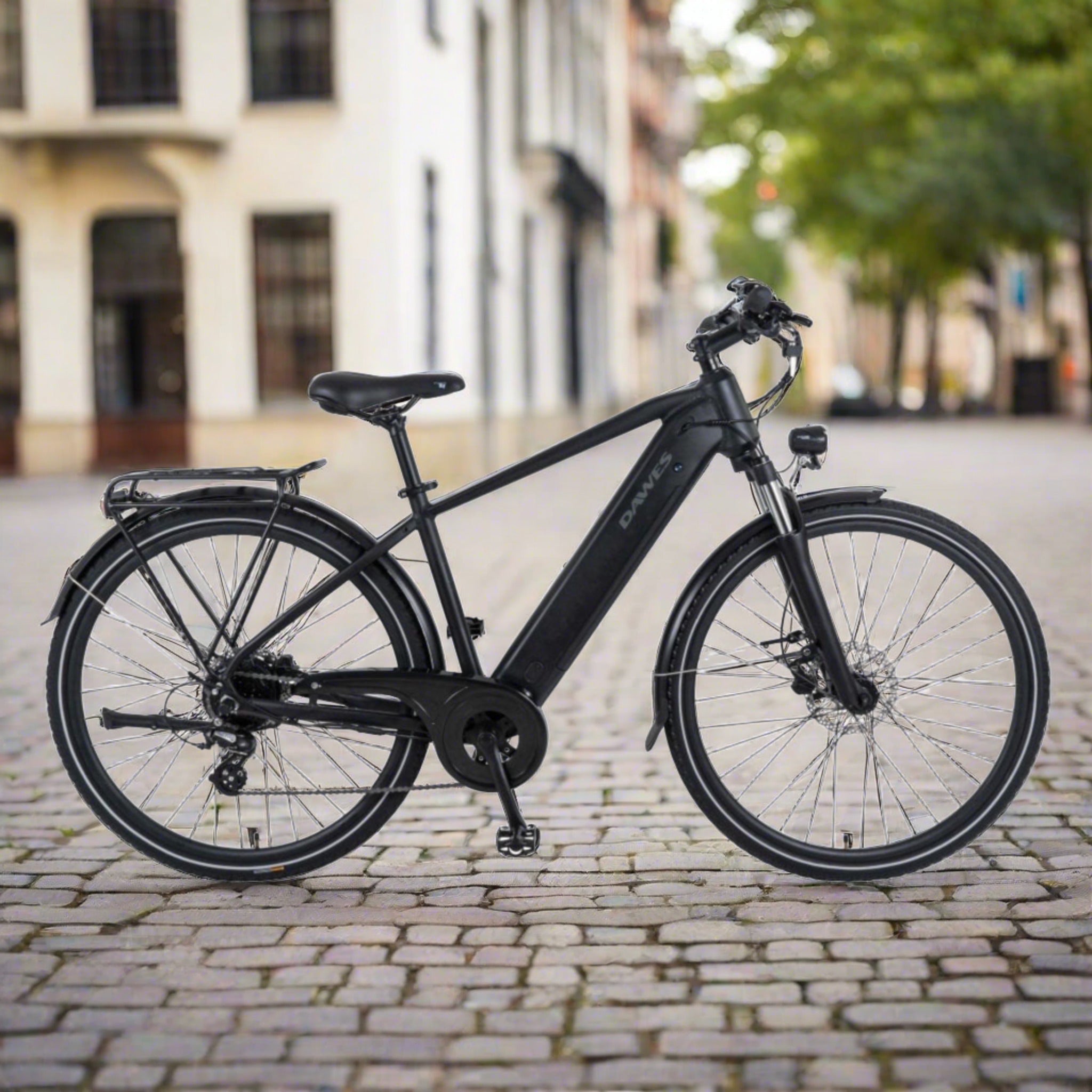

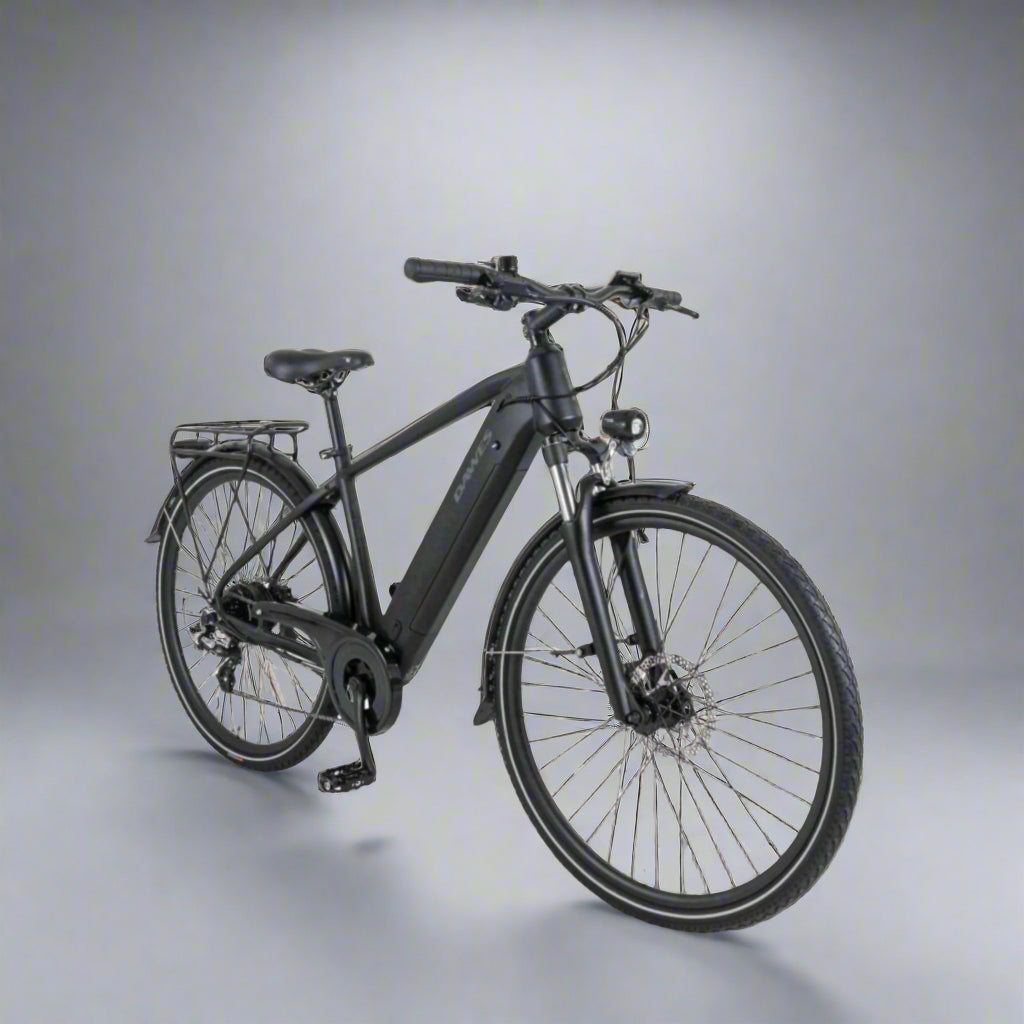

Dawes Spire 1.0 Crossbar Electric Hybrid Bike

£1,599.00

Size: Medium (17")

In Stock | Estimated 3-5 Days Delivery

American Express
Apple Pay
Google Pay
Klarna
Maestro
Mastercard
PayPal
Shop Pay
Visa

The Dawes Spire 1.0 Crossbar electric bike is a true all-rounder, designed for everything from daily commutes to leisurely weekend rides through parks and canal paths. Its crossbar frame integrates a powerful 360Wh battery, delivering over 40 miles (64km) of assisted pedalling to keep you going further. Powering the bike is a Bafang rear hub motor, a brand known for its reliability and performance, providing 32Nm of torque to help you tackle hills with ease and cruise smoothly on flat terrain. The Samsung battery cells ensure top-tier quality, safety, and performance, meeting stringent UK and EU regulations for peace of mind.

Riders can fine-tune their experience with the intuitive handlebar display, offering five power assist modes, plus real-time ride data like speed, trip distance, and battery level. A walk-assist function is also included, engaging the motor to help push the bike uphill when walking. Charging is effortless, with the battery removable for off-bike charging, taking just five hours for a full charge. A secure battery lock adds an extra layer of security when parked in public spaces.

Built for versatility and comfort, the Spire 1.0 features Shimano Altus 1x8-speed gearing for smooth shifting and Shimano MT200 hydraulic disc brakes for powerful stopping power in all conditions. The 70mm travel suspension fork absorbs bumps and vibrations, while puncture-protected Kenda 700x45c tyres offer excellent grip and reflectivity for added visibility. Additional features include integrated front and rear LED lights, a rear pannier rack, full mudguards, and an adjustable kickstand—all designed to enhance your riding experience.

Key Benefits

  • Free full assembly
  • Powerful Electric Assistance – Bafang rear hub motor with 32Nm torque and Samsung 360Wh battery for up to 40 miles (64km) of range.
  • Easy Control & Ride Data – 5 power modes, LCD display with battery level, speed, and trip data, plus walk-assist mode for pushing up hills.
  • Smooth & Comfortable Ride – Shimano Altus 1x8-speed gearing, Shimano MT200 hydraulic disc brakes, and a 70mm suspension fork for absorbing rough terrain.
  • Durable & Safe Tyres – Kenda 700x45c tyres with puncture protection and reflective sidewalls for extra visibility in low light.
  • Fully Equipped – Integrated front & rear LED lights, rear pannier rack, full mudguards, and an adjustable kickstand for added convenience.
Product Specifications

Performance & Power

  • Maximum Range: 40 miles / 64km
  • Recharge Time: 5 hours
  • Maximum Assisted Speed: 15.5mph / 25kmh
  • Motor: Bafang rear hub motor, 36V 250W, 32Nm torque, 25kmh max speed
  • Motor Type: Rear hub motor
  • Motor Torque: 32Nm
  • Battery: Integrated 360Wh (36V 10.0Ah), Samsung cells, Removable for charging on or off the bike
  • Battery Type: Integrated
  • Charger: 42V 2A, 3-pin UK plug

Display & Controls

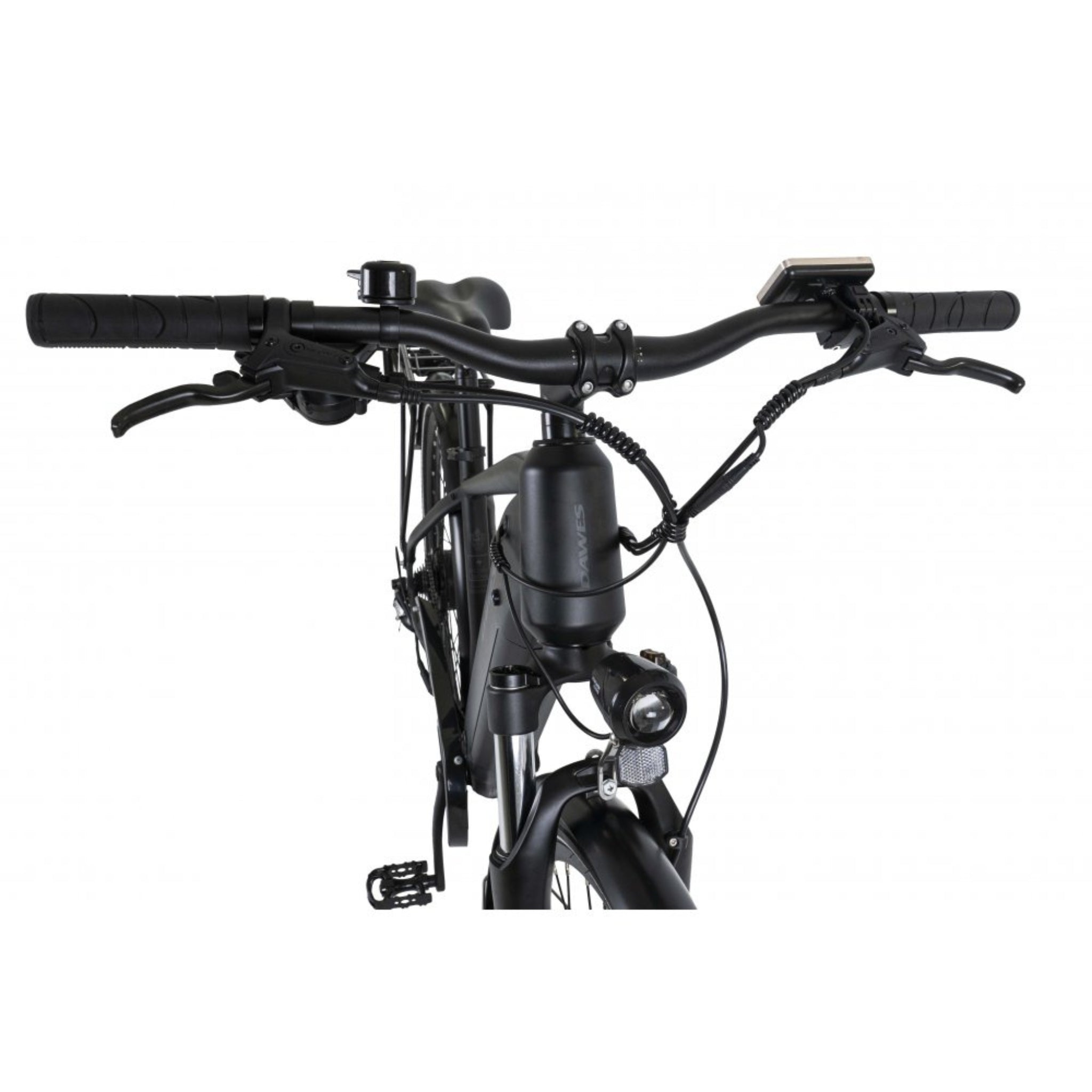

  • Display: Handlebar LCD display
  • Speed Sensor: Left-hand crank mounted

Frame & Fork

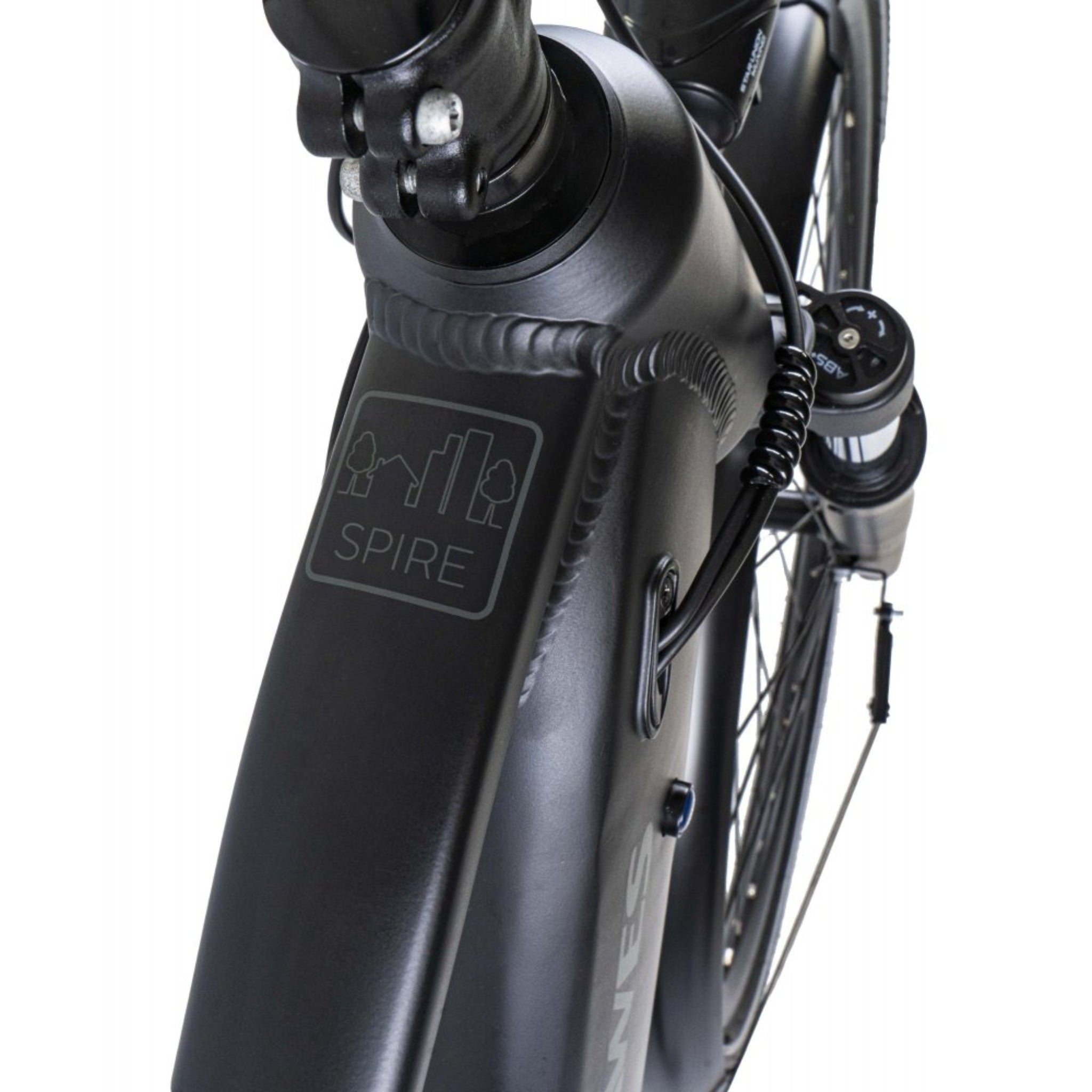

  • Frame: 6061 aluminium crossbar frame, Internal cable routing, Fully integrated removable battery, 700c wheels
  • Fork: 700c suspension fork, Hydraulic lockout, 70mm travel

Cockpit & Components

  • Headset: Sealed bearings
  • Handlebar: Aluminium, 680mm wide, 20mm rise, 6° backsweep
  • Stem: Aluminium, 90mm reach, 31.8mm clamp diameter
  • Grips: Ergonomic comfort, Lock-on, Black

Drivetrain & Gearing

  • Gear Shifters: Shimano Altus SL-M315 Rapidfire Plus, 8-speed

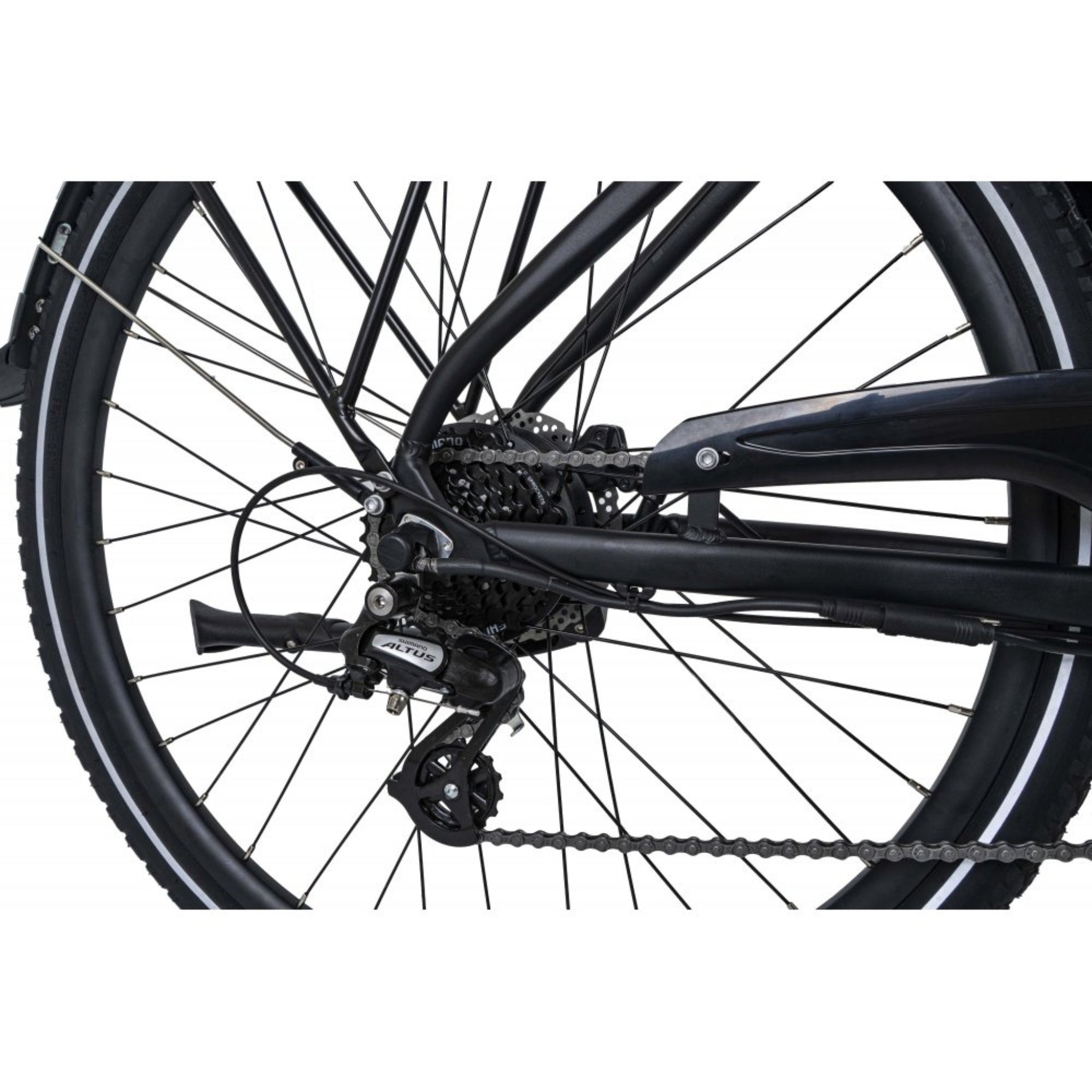

  • Rear Derailleur: Shimano Altus RD-M310, 8-speed
  • Chain: KMC Z8.1, 8-speed
  • Cassette/Freewheel: Shimano Altus CS-HG200, 12-32T, 8-speed
  • Chainset: Aluminium, 42T, 170mm crank arms
  • Number of Gears: 8
  • Bottom Bracket: Sealed

Braking System

  • Brakes: Shimano MT200 hydraulic disc brakes
  • Front Rotor: 180mm
  • Rear Rotor: 160mm
  • Brake Levers: Shimano MT200 hydraulic disc

Wheels & Tyres

  • Front Hub: Alloy with quick release, 36-hole
  • Rear Hub: Bafang rear hub motor, 36V 250W, 32Nm torque, 25kmh max speed
  • Rims: 700c double-wall alloy, 36-hole
  • Tyres: Kenda K197, 700x45c, Puncture protection with reflective side strip

Comfort & Accessories

  • Saddle: Selle Royal Freeway
  • Seat Post: Aluminium, 350mm length, 30.4mm diameter
  • Lights:
  • Mudguards: Full-length, 56mm wide, Black
  • Kickstand: Chainstay mounted, Aluminium
  • Pannier Rack: Aluminium with integrated rear light mount
Why We Choose Dawes

We choose Dawes because they represent one of the most iconic names in British cycling, with a heritage stretching back over a century. Known for producing dependable, versatile bikes, Dawes blends traditional craftsmanship with modern design to create models that suit families, commuters, and leisure riders alike.

  • British Heritage – Over 100 years of trusted cycling experience.
  • 💡 Reliable Quality – Bikes built to last, with a focus on comfort and durability.
  • 🌍 Versatile Range – From city commuters to family and leisure bikes.
  • 🚴 Accessible for All – Making cycling simple, enjoyable, and affordable.

That’s why Dawes is part of the Norths Athlete collection — a true British cycling brand that continues to inspire confidence in riders of all generations.
